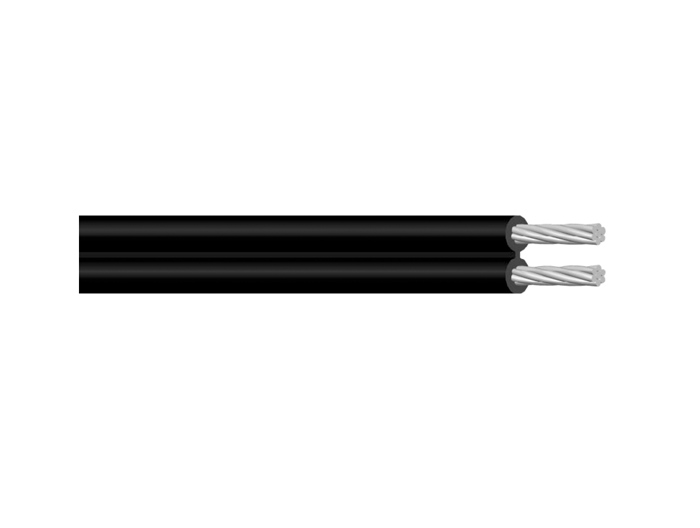

UL 4433

UL 4433

For general commercial electronic, electrical, and equipment instruments’ internal wiring, suitable for applications where the ambient temperature does not exceed 125 °C.

Product Description

Insulation:XLPE
Rated temperature:-40℃ to +125 ℃
Rated voltage:300V
Conductors:36AWG-18AWG
Standards:UL758,UL1581
Flame compliant:UL CSA FT2,UL VW-1~ CSA FT1
Certificate:ROHs2.0, REACH

线规

AWG

结构(N/mm)

CONSTRUCTION

线径(mm)

DIA

绝缘厚度(mm)

AVG. THICK

2C 短轴外径(mm)

OVER DTAMEREDR

2C长轴外径(mm)

OVER DIAMEREDR
20 21/0.18  0.96  0.2  1.55 3.2
22 17/0.16 0.76  0.2  1.30 2.7
24 11/0.16 0.60 0.2  1.15 2.4
26 7/0.16  0.49 0.2  1.05 2.2
28 7/0.127 0.36 0.2  0.84 1.78
30 7/0.10 0.30 0.2  0.75 1.60
