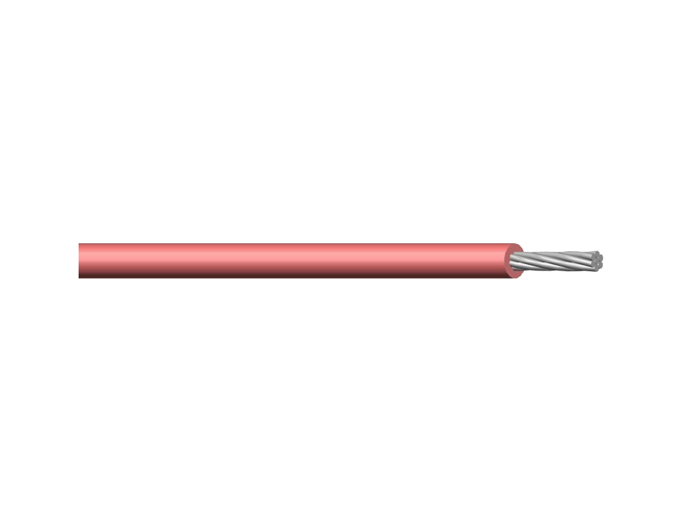

UL 3265

UL 3265

For general commercial electronic, electrical, and equipment instruments’ internal wiring, suitable for applications where the ambient temperature does not exceed 125 °C.

Product Description

Insulation：XLPE
Rated temperature：-40℃ to +125 ℃
Rated voltage：150V
Conductors：32AWG-16AWG
Standards：UL758,UL1581
Flame compliant：UL CSA FT2，UL VW-1~ CSA FT1
Certificate：ROHs2.0, REACH

线规

AWG

结构(N/mm)

CONSTRUCTION

线径(mm)

DIA

绝缘厚度(mm)

AVG. THICK

完成外径(mm)

OVER DTAMEREDR

导体电阻(Ω/km20℃)

COND. RESISTANCE
20 21/0.18 0.95  0.26  1.50 ≤36.7
20 26/0.16  0.94  0.26  1.50 ≤36.7
22 7/0.26 0.79  0.26  1.30 ≤59.4
22 17/0.16  0.76 0.26  1.30 ≤59.4
24 11/0.16  0.61 0.26  1.10 ≤94.2
26 7/0.16 0.49 0.26  1.05 ≤150
28 7/0.127 0.39 0.26  1.00   ≤150
30 7/0.1 0.31 0.26  0.80   ≤372.43
