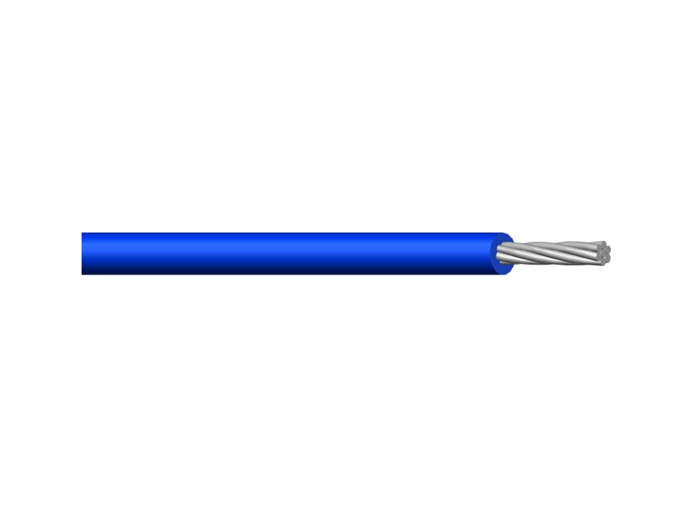

UL 3302

UL 3302

For general commercial electronic, electrical, and equipment instruments’ internal wiring, suitable for applications where the ambient temperature does not exceed 105 °C.

Product Description

Insulation：XLPE
Rated temperature：-40℃ to +105 ℃
Rated voltage：30V
Conductors：大于40AWG
Standards：UL758,UL1581
Flame compliant：UL CSA FT2，UL VW-1~ CSA FT1
Certificate：ROHs2.0, REACH

线规

AWG

结构(N/mm)

CONSTRUCTION

线径(mm)

DIA

绝缘厚度(mm)

AVG. THICK

完成外径(mm)

OVER DTAMEREDR

导体电阻(Ω/km20℃)

COND. RESISTANCE
18 34/0.18 1.21 0.26 1.85 ≤23.2
20 26/0.16 0.95 0.26 1.45 ≤36.7
22 17/0.16 0.79 0.26 1.40 ≤59.4
24 11/0.16 0.6 0.26 1.2 ≤94.2
26 7/0.16 0.48 0.26 1.0 ≤150
28 7/0.127 0.38 0.26 0.8 ≤239
30 7/0.1 0.3 0.26 0.7 ≤381
32 7/0.08 0.24 0.26 0.6 ≤582
